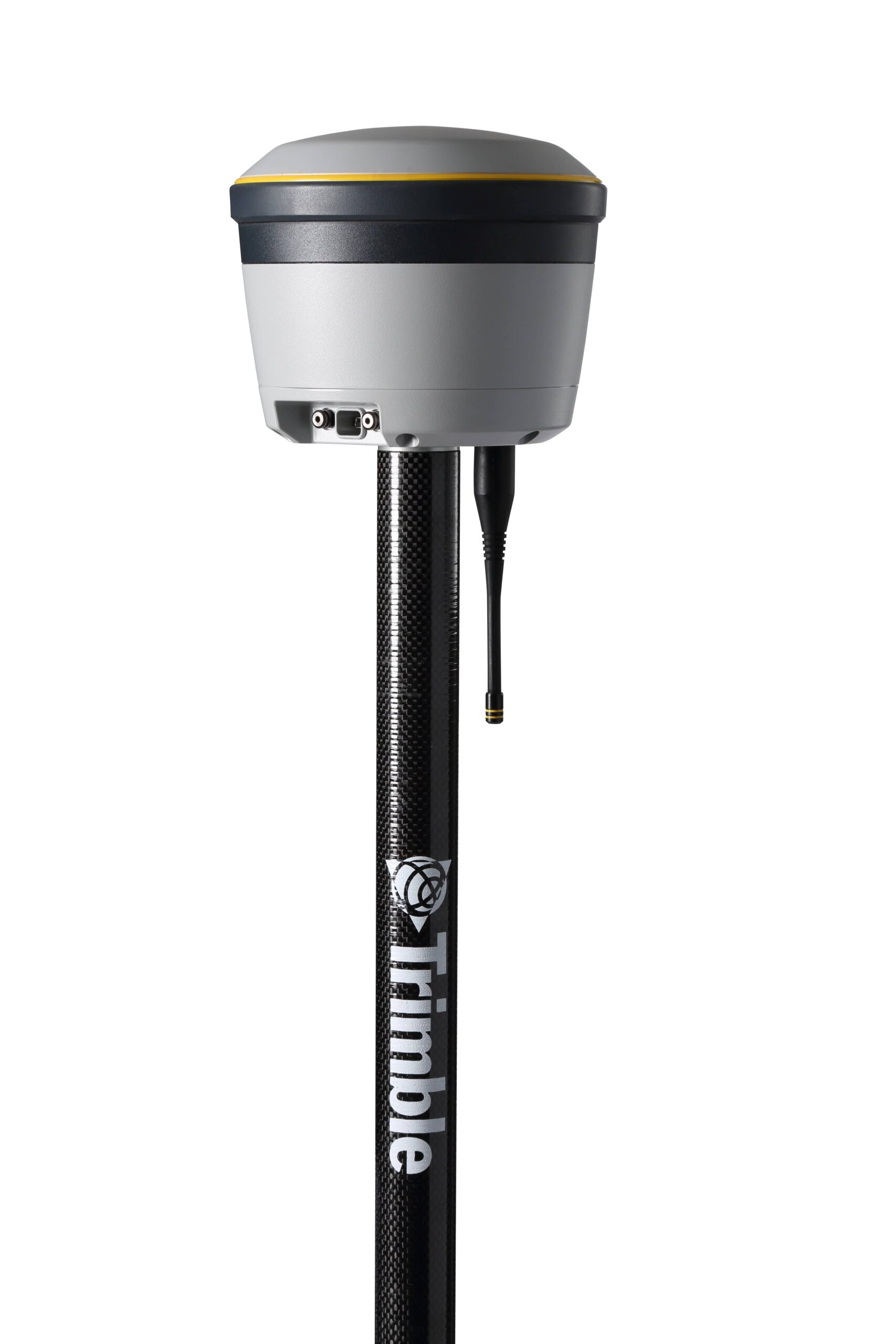

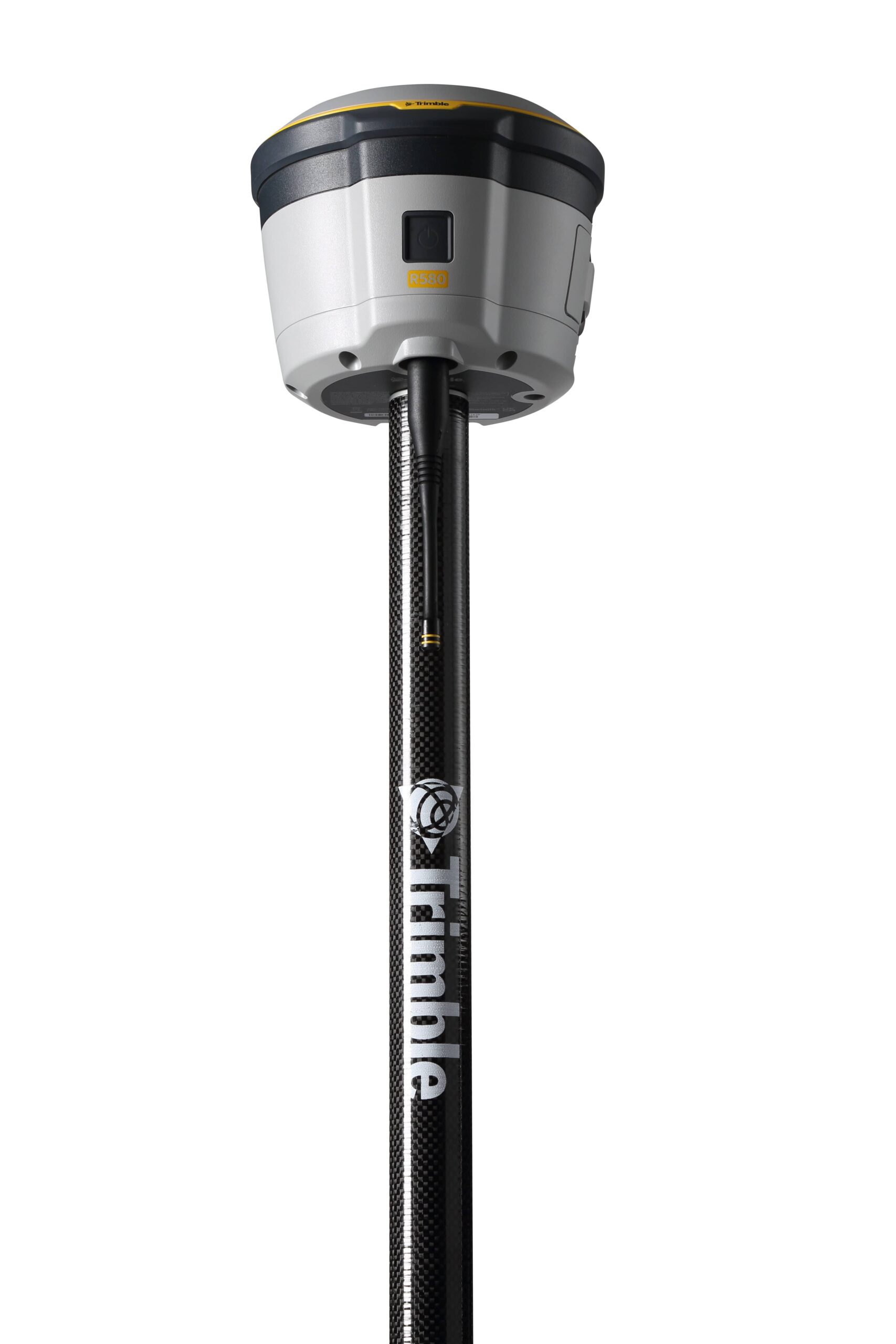

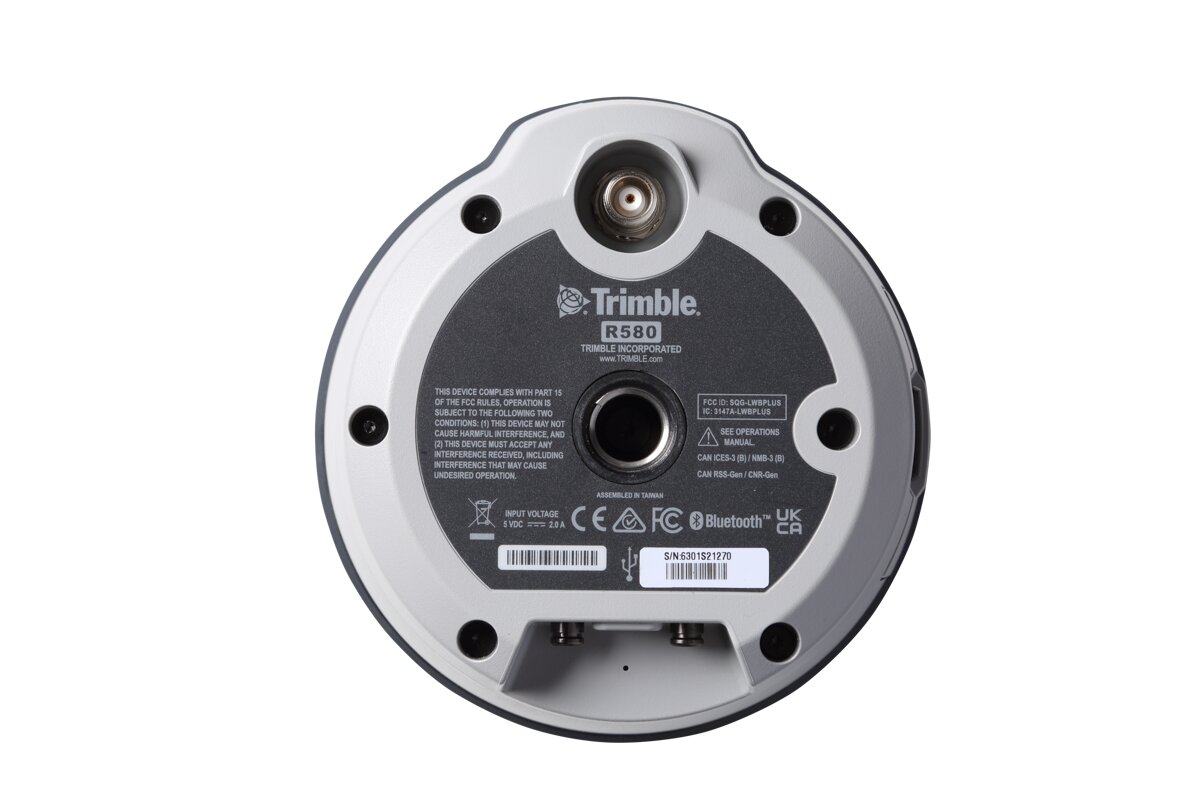

The Trimble R580 is a professional solution for geospatial applications that require high accuracy and reliability.

TECHNICAL SPECIFICATIONS:

– Trimble ProPoint

– Trimble xFill

– Trimble Maxwell 7 technology with 336 GNSS channels

– Trimble EVEREST Plus multipath signal rejection technology

– built-in precise antenna:

GPS: L1C, L1 C/A, L2E (L2P), L2C, L5

GLONASS: L1C/A, L1P, L2C/A, L2P, L3

Galileo: E1, E5A, E5B, E5AItBOC

BeiDou: B1, B2, B1C, B2A, B2B

QZSS: L1 C/A, L1C, L2C, L5

IRNSS: L5

SBAS: L1 C/A (EGNOS/MSAS GAGAN/SDCM), L1 C/A, L5 (WAAS)

L-Band: Trimble RTX

– Bluetooth: 2.4 GHz

– Wi-Fi: Access point and client mode

– accuracy of statics: 3mm+0.5ppm RMS horizontally

– static accuracy: 5mm+0.5ppm RMS vertically

– network kinematics accuracy: 10mm+0.5ppm RMS horizontally

– network kinematics accuracy: 20mm+0.5ppm RMS vertically

– 48 MB of internal memory for storage

– built-in receiver for Trimbe RTX differential correction

– built-in 450 MHz UHF Radio receiver (Enable Radio option)

– Li-Ion battery for 5 hours of operation in rover mode

– dimensions: 14 cm x 11.4 cm

– weight: 1.08 kg

– IP65

– warranty period: 12 months with the possibility of extension up to 5 years

KIT CONTAINS:

– 202081-00 Trimble R580 Packout Kit

1x 199020-01, FRU, GNSS Receiver- R580

1x 74408-00, ASSY CABLE USB MINI-B PLUG TO A PLUG

1x 109000, Dual Slot Charger without Cables or Power Supply

2x 192670-25, BPack,Li-Ion,INDUS,2S1P,7.2V,2200mAHr

1x 104246-20, Trimble R580 Receiver Quick Start Guide

1x 105716-20, Pickleball Packout Box

1x 105717-10, Cricketball Packout Box PE High Recycle Content Foam Set

1x 106765-10, R580 Packout Box Label

1x 47244-21, Trimble Access Welcome Card

– 130941-00, Pickleball Bluetooth License

– R580-GEO-OPT-001-00, Trimble R580 Option – Standard Receiver Firmware (Geospatial)
